PVC be- ontluchting bocht 25mm slangaansluiting

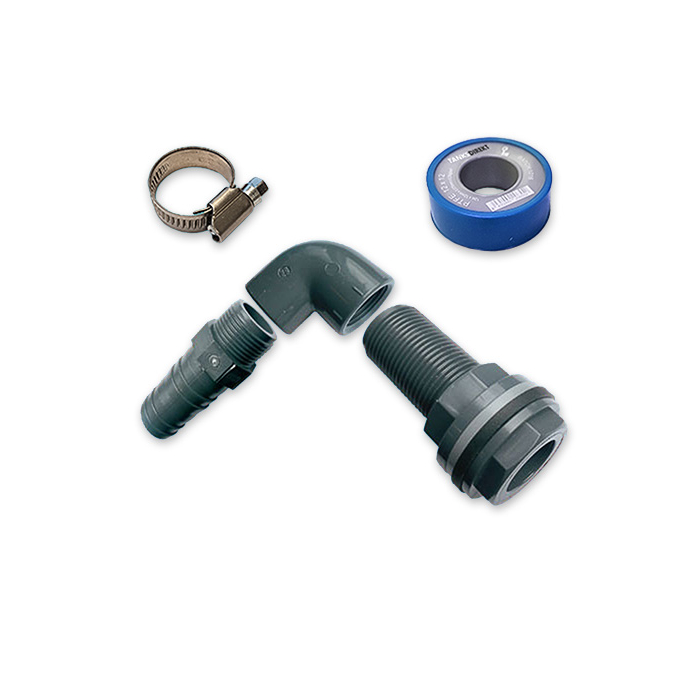

This product can be installed by you easily. First drill a hole with a diameter of 27mm in the tank on the wanted position. Twist the grey nut off the tank connection and take of the white plastic ring. From inside the tank now stick the rest of the tank connection with the rubber seal still on it through the drilled hole. (beware: you should be able to reach the drilled hole from the inside of the tank). Now slide the white plastic ring over the tank connection and then screw the grey nut on tight. Now there is a connection with external thread left sticking out of the tank. On this thread the other products can be screwed on. Beware thas all thread connections should have 6 wraps of PTFE-tape around them. When this is done you can connect the hose to the hose tail please make sure you use a hose clip to tighten them together. All suitable products you can find below.
