1000 Litre Storage Tank Round Upright – (RPV-Series)

Description / 1000 Litre Storage Tank Round Upright – (RPV-Series)
Storage Tank 1000 Litre Round Upright 30 cm Lid Vented

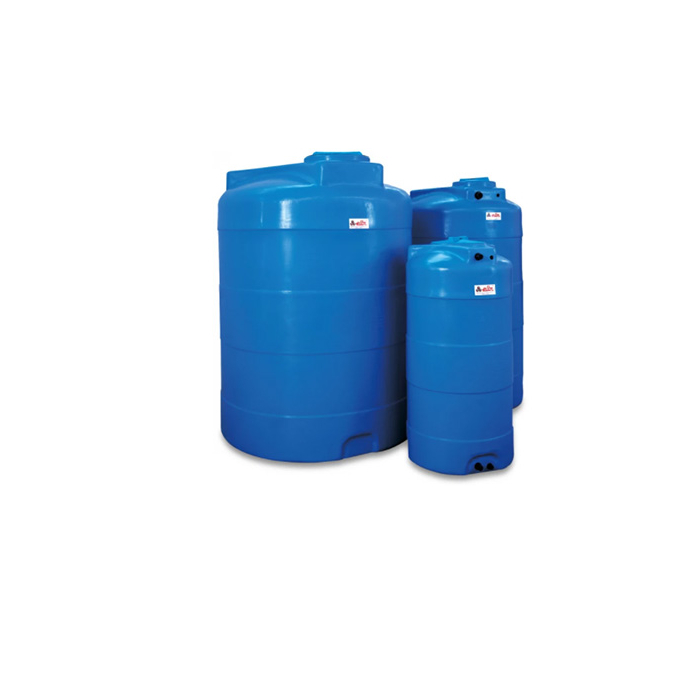

Our RPV-1000 Litre Round Blue upright water tanks are suitable for storage of potable water and many other fluids. The plastic tanks have a diameter of 79cm and the lid has a diameter of 30 cm. The storage tanks have a wall thickness of ca. 6 mm. On the upper side and lower side of the tanks it is possible to add connections for Inlet or outlet purposes. The tank is delivered without connections installed. These connections can be ordered separately and has to be installed on the tanks on location by yourself or an installation company. An overview of our tank connections can be found with our suitable products.
Drawings & Certificates
More Information
| General Information | |
|---|---|
| Capacity (L) | 1000 |
| Dimensions (LxWxH cm) | 79 x 79 x 218 |
| Height incl. Lid (cm) | 218 |
| Shape & Type | Vertical/Round Tank |
| Weight (kg) | 33 |
| Material & Durability | |
| Material | LDPE |
| Wall Thickness (mm) | 6 |
| Food-Safe Certification | Regulation (EC) Nr. 10/2011 & (EC) No 1935/2004 |
| UV Resistance | Yes |
| Temperature Resistance (°C) | max. + 60°C |
| Chemical Resistance | Yes |
| Suitable for Waste Water & Diesel | Yes |
| Design Features | |
| Baffles | No |
| Lid Size (cm) | 30 cm |
| Inspection Opening (cm) | 25,5 cm |
| Lid vented | Yes |
| Lid with Float | optional |
| 3D file available | No |
| Connections & Installation | |
| BSP Connections | No |
| Spin Weld Outlet possible | No |
| Installation Type | upright, vertical |
| Accessory Compatibility | Plastic, Filters, Float-Valves |
