• For commercial & private use

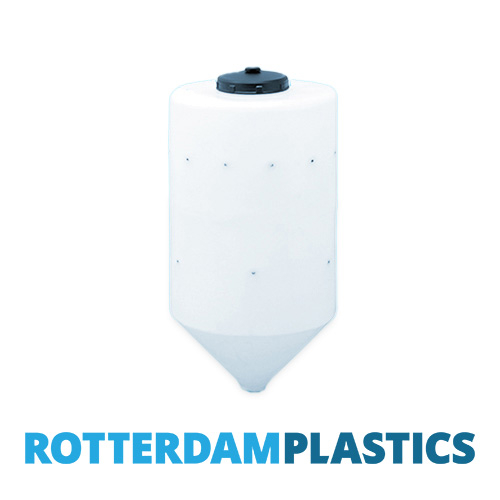

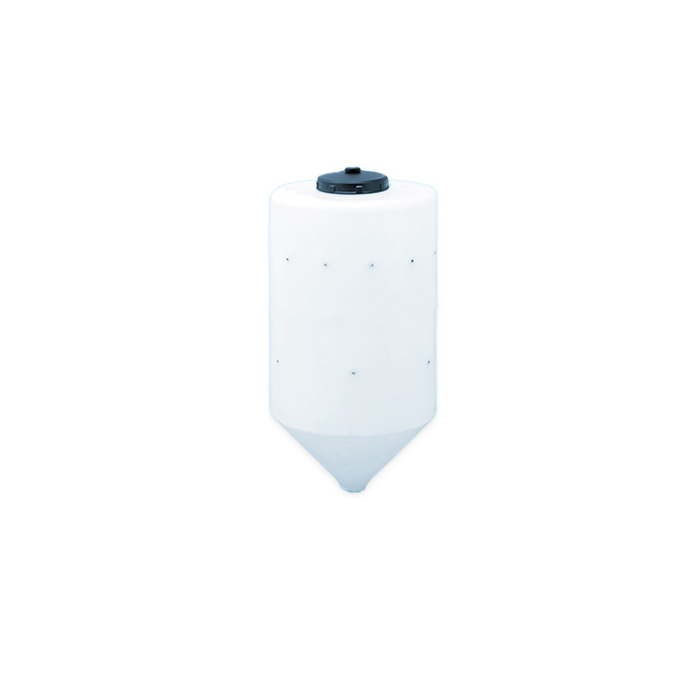

200 Litre Conical Water Tank

Article#
Conical plastic tank, resistant and durable. Large 20 cm lid opening and 1" inlet und outlet. Including 6 x M8 and 12 x M8 inserts/screw connections for fastening in a frame.
View full description
Capacity
(Litre)
200 Litre
Dimensions
(LxWxH)
56.8x56.8x97.5 cm
Lid Size
cm
20 cm
View all specifications
Selectable options:
drilled (open)

drilled (open)

connection of accessories possible.

not drilled (closed)

not drilled (closed)

outlet/threaded sleeve completely encased in plastic from inside - drilling possible at any time.

Selectable options:

vented

allows air exchange for pressure equalization

unvented

sealed lid for closed systems

{"4157":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":16,"shipmentDate":"March 26, 2026","delivery_time":"1-3 Days","delivery_date_range":"27 - 31 Mar"},{"qty":9999999,"shipmentDate":"April 16, 2026","delivery_time":"1-3 Days","delivery_date_range":"17 - 21 Apr"}],"4208":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4188":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4182":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4221":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4216":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4212":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4162":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4197":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4180":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4200":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4166":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4173":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4160":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4124":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4118":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4141":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4116":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4152":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4130":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4145":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4148":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4204":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4174":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4137":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4112":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4128":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}],"4190":[{"qty":0,"shipmentDate":"March 13, 2026","delivery_time":"1-3 Days","delivery_date_range":"16 - 18 Mar"},{"qty":9999999,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"}]}
{"inStock":"In Stock","deliveryTime":"Delivery Time:","deliveryBetween":"Delivery between","itemsLeft":"pc. available","available":"Available","estimatedDeliveryTime":"Delivery Time:","estimatedDeliveryBetween":"Estimated delivery between","selectLocation":"Select Location"}
{"country_id":"","postcode":"","has_address":false}
{"AT":"Austria","BE":"Belgium","CH":"Switzerland","CZ":"Czechia","DE":"Germany","DK":"Denmark","ES":"Spain","FI":"Finland","FR":"France","HR":"Croatia","IT":"Italy","LU":"Luxembourg","NL":"Netherlands","NO":"Norway","PL":"Poland","PT":"Portugal","SE":"Sweden"}
{"in_stock":"text-green-700","limited_in_stock":"text-orange-400","out_of_stock":"text-rose-700"}
{"in_stock":"text-green-700","limited_in_stock":"text-stone-700","out_of_stock":"text-orange-800"}
As low as: 298.–
360.58 Incl. Tax
90% available from stock
Secure payment: iDEAL, PayPal, Credit Card & Bancontact
Personal advice & fast support

Description / 200 Litre Conical Water Tank

200 Litre Tank Conical 20 cm Lid and 1 Inch inlet and outlet

Our 200 Litre natural translucent finish conical plastic tanks are suitable for storage of potable water and many other fluids. The plastic tanks have a 1" brass inlet internal thread and a 1" brass outlet internal thread on the bottom side of the tanks. The lid has a diameter of 20 cm; available vented or unvented. The tank contains 6 x M8 and 12 x M8 inserts. These can be used for connecting a frame to the tanks. Frames cannot be delivered by us but must be made on demand by a third party. The wall thickness of the Tank is ca. 8 mm.

Drawings & Certificates

Resistance Chart Fluids Tanks (Size: 88 KB)
WRAS Certificate Potable Water Food Grade Temperature (Size: 2 MB)
RoHS 3 and REACH Statement (Size: 257.8 KB)
Technical Drawing (Size: 654.8 KB)

More Information

General Information
Capacity (L) 200
Dimensions (LxWxH cm) 56.8 x 56.8 x 97.5
Height incl. Lid (cm) 101.5
Shape & Type Round Tank, Conical Tank
Weight (kg) 17.5
Material & Durability
Material MDPE
Wall Thickness (mm) 6
Food-Safe Certification WRAS approved - natural / black / light blue
UV Resistance Yes
Temperature Resistance (°C) max. + 70°C
Chemical Resistance Yes with undrilled BSP Outlet
Suitable for Waste Water & Diesel Yes
Design Features
Baffles No
Lid Size (cm) 20 cm
Inspection Opening (cm) 18,9 cm
Lid vented selectable
Lid with Float optional
3D file available Yes, on request
Connections & Installation
BSP Connections Yes
BSP Connection Size 1"
Spin Weld Outlet possible Yes
Installation Type upright, vertical
Mounting Options plastic-coated steel strips / stainless steel brackets / frames
Accessory Compatibility Brass & Plastic, Filters, Float-Valves

Make your order complete

,,

Tank Connection Set Brass 90° Bend Sockett: 1 Inch Knee Socket, Ball Valve and Hosetail for 25 mm Hose

56.–
In Stock
,,

Tank Connection Set Brass Straight: 1 Inch Ball Valve and Hosetail for 25 mm Hose

47.–
In Stock
Push-In BSP Fitting 1" external thread x 3/4" internal thread + EPDM Gasket - food safe

Push-In BSP Fitting 1" external thread x 3/4" internal thread + EPDM Gasket - food safe

18.–
In Stock
,,

PP Tank Connection Set 25 mm Hose 90° Bend

28.–
In Stock
,,

PP Tank Connection Set 30 mm Hose Straight

28.–
In Stock
,,

Tank Connection Set 25 mm Hose 90° Bend

22.–
In Stock
Hosetail 13 mm x 1 Inch External Thread

Hosetail 13 mm x 1 Inch External Thread

11.90
In Stock
Tank Connection Set 25 mm Hose Straight,,

Tank Connection Set 25 mm Hose Straight

22.–
In Stock
PVC Connection 1 Inch External Thread

Tank Connection 1 Inch External Thread

13.–
In Stock
PVC Ball Valve 1 Inch Internal Thread

PVC Ball Valve 1 Inch Internal Thread

26.50
In Stock
Lid Black 20 cm Internal Thread with Float Valve 1 Inch - 13 mm Hose Connection

Lid Black 20 cm Internal Thread with Float Valve 1 Inch - 13 mm Hose Connection

Lid Size 20 cm
94.–
In Stock
Lid Black 20 cm Internal Thread - Unvented

Lid Black 20 cm Internal Thread - Unvented

Lid Size 20 cm
16.–
In Stock
Lid Black 20 cm Internal Thread with Float Valve 1 Inch - 25 mm Hose Connection

Lid Black 20 cm Internal Thread with Float Valve 1 Inch - 25 mm Hose Connection

Lid Size 20 cm
94.–
In Stock

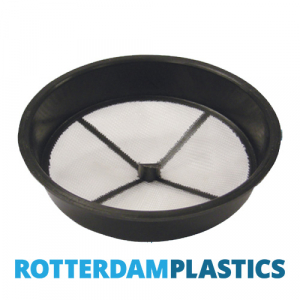

Filter ø 20 cm x 24 cm deep
