500 Litre Rectangular Horizontal Storage Tank – (RPRKH-Series)
Description / 500 Litre Rectangular Horizontal Storage Tank – (RPRKH-Series)

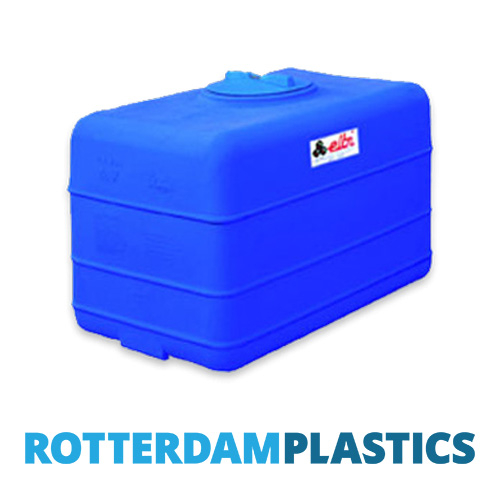

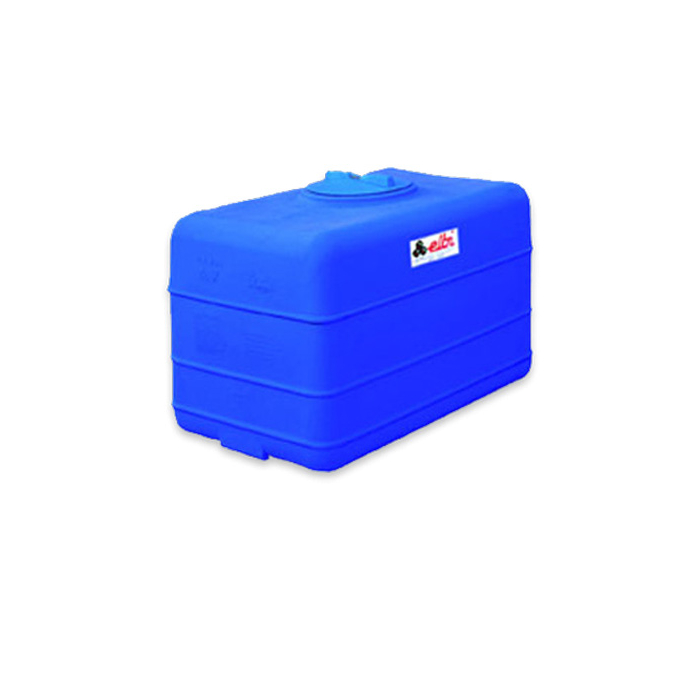

The RPRKH 500 L rectangular storage tank is a flat, horizontal rectangular tank made from rotationally moulded, UV-stabilised, food-grade LLDPE. Ideal for stationary installation indoors or outdoors to store potable, process or rainwater. The 30 cm screw lid includes an integrated vent labyrinth for safe pressure equalisation.
All technical details such as dimensions, weight and material can be found in the technical data table.
Features & Benefits
- Space-saving rectangular footprint
- Food-grade, UV-stabilised polyethylene (LLDPE)
- 30 cm lid with integrated vent labyrinth
- Approx. 6 mm wall thickness – durable and long-lasting
- For stationary indoor and outdoor installation
Installation & Handling
Connections can be installed individually on the flat tank surfaces. Compatible push-in BSP fittings are available separately. An optional float valve can be added.
Applications
- Potable water storage
- Rainwater harvesting & irrigation
- Process, cooling or buffer water
- Stationary systems for industrial, agricultural and domestic use
Quality & Manufacturing
Rotationally moulded from UV-stabilised LLDPE for impact resistance, dimensional stability and corrosion-free performance. Designed for long-term stationary use indoors and outdoors.
FAQs & Installation
- Is it suitable for drinking water?
Yes, the material is food-grade LLDPE. - How do I add fittings?
Connections can be installed individually on the flat tank surfaces. - Outdoor installation?
Yes, the UV-stabilised material is weather-resistant. - Are accessories available?
Yes – see push-in BSP fittings and an optional float valve.
Drawings & Certificates
More Information
| General Information | |
|---|---|
| Capacity (L) | 500 |
| Dimensions (LxWxH cm) | 106.5 x 72 x 77 |
| Height incl. Lid (cm) | 77 |
| Shape & Type | Rectangular Tank |
| Weight (kg) | 17.5 |
| Material & Durability | |
| Material | LDPE |
| Wall Thickness (mm) | 6 |
| Food-Safe Certification | Regulation (EC) Nr. 10/2011 & (EC) No 1935/2004 |
| UV Resistance | Yes |
| Temperature Resistance (°C) | max. + 60°C |
| Chemical Resistance | Yes |
| Suitable for Waste Water & Diesel | Yes |
| Design Features | |
| Baffles | No |
| Lid Size (cm) | 30 cm |
| Inspection Opening (cm) | 25,5 cm |
| Lid vented | Yes |
| Lid with Float | optional |
| 3D file available | No |
| Connections & Installation | |
| BSP Connections | No |
| Spin Weld Outlet possible | No |
| Installation Type | upright, vertical |
| Accessory Compatibility | Plastic, Filters, Float-Valves |
