• For commercial & private use

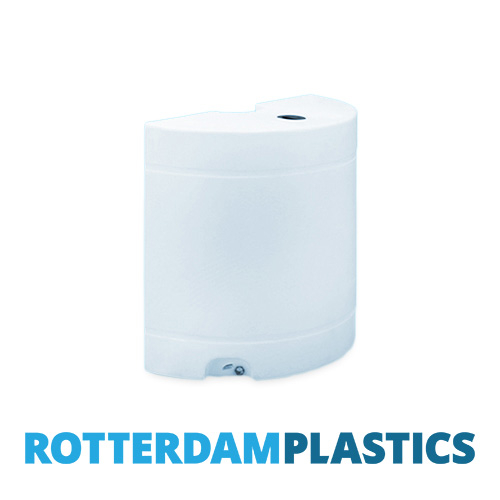

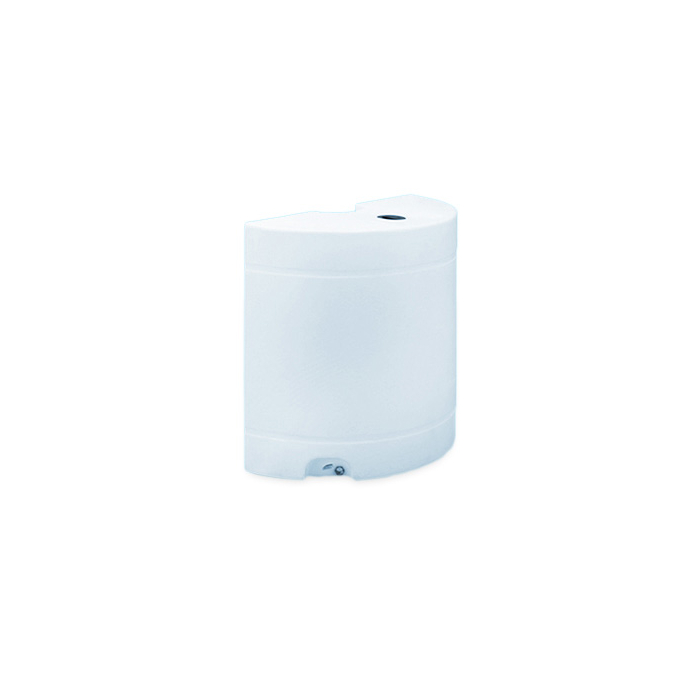

550 Litre D-Shaped Water Tank

Article#
Made from high-quality MDPE, this 550 litre D-shape upright water tank is designed for reliable use. Flat-back design fits directly against walls, built for long service life.
View full description
Capacity
(Litre)
550 Litre
Dimensions
(LxWxH)
120x60x120 cm
Lid Size
cm
12 cm
View all specifications
Selectable options:
drilled (open)

drilled (open)

connection of accessories possible.

not drilled (closed)

not drilled (closed)

outlet/threaded sleeve completely encased in plastic from inside - drilling possible at any time.

Selectable options:

vented

allows air exchange for pressure equalization

unvented

sealed lid for closed systems

{"6451":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6478":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6467":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6465":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6483":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6481":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6480":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6455":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6471":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6464":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6473":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6457":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6459":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6453":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6436":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6433":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6443":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6432":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6449":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6439":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6445":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6447":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6476":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6461":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6441":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6430":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6437":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}],"6469":[{"qty":0,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}]}
{"inStock":"In Stock","deliveryTime":"Delivery Time:","deliveryBetween":"Delivery between","itemsLeft":"pc. available","available":"Available","estimatedDeliveryTime":"Delivery Time:","estimatedDeliveryBetween":"Estimated delivery between","selectLocation":"Select Location"}
{"country_id":"","postcode":"","has_address":false}
{"AT":"Austria","BE":"Belgium","CH":"Switzerland","CZ":"Czechia","DE":"Germany","DK":"Denmark","ES":"Spain","FI":"Finland","FR":"France","HR":"Croatia","IT":"Italy","LU":"Luxembourg","NL":"Netherlands","NO":"Norway","PL":"Poland","PT":"Portugal","SE":"Sweden"}
{"in_stock":"text-green-700","limited_in_stock":"text-orange-400","out_of_stock":"text-rose-700"}
{"in_stock":"text-green-700","limited_in_stock":"text-stone-700","out_of_stock":"text-orange-800"}
As low as: 535.–
647.35 Incl. Tax
90% available from stock
Secure payment: iDEAL, PayPal, Credit Card & Bancontact
Personal advice & fast support

Description / 550 Litre D-Shaped Water Tank

550 litre upright water tank made from high-quality MDPE – narrow upright/vertical design for space-saving installation in tight areas.

Features & Benefits

  • 7-8 mm wall thickness for strength and reliability
  • From high quality MDPE, roto-moulded (seamless; no welded seams)
  • Durable and impact-resistant for long service life
  • Food-safe, UV-resistant and chemical-resistant; REACH-compliant
  • Temperature resistant for water up to +70 °C

Installation & Handling

  • The 1" BSP outlet is standard. Choose drilled (open) for immediate use with brass connection sets, or undrilled (sealed) so the outlet remains closed until needed.
  • For adding extra connections, outlets, fillers or vents use our PP Tank Connection Sets. See our installation guide for detailed instructions.
  • 12 cm screw lid (unvented) for secure filling and cleaning.
  • Inspection opening: 10.6 cm for easy access and cleaning
  • Dimensions: 120 cm × 60 cm × 120 cm (L × W × H incl. lid)

Applications

  • Professional & industrial: plant and mechanical engineering, OEM projects, industrial and production facilities, process and cooling water, agriculture, horticulture, construction sites
  • Mobile: campers, motorhomes, caravans, boats, yachts, service vehicles, cleaning vehicles, mobile water supply, events and emergency services
  • Domestic: rainwater harvesting, garden irrigation, toilets, washing machines, cleaning systems, household water supply and DIY projects
  • Spin Weld Outlets available on request for larger orders or OEM projects.

Drawings & Certificates

3D step file available on request. Technical drawing, WRAS food safety certificate, REACH/RoHS-compliance and chemical resistance list are available for download below.

FAQs & Installation

  • Is a vented lid available for this water tank?
    This water tank is supplied only with an unvented 12 cm lid. Venting can be added with our tank vents.
  • What does drilled vs. undrilled outlet mean?
  • How can I install additional connections on the tank?
  • How should I secure or fasten the water tank?

Find detailed answers and more questions in our FAQ section.

Drawings & Certificates

Resistance Chart Fluids Tanks (Size: 88 KB)
WRAS Certificate Potable Water Food Grade Temperature (Size: 2 MB)
RoHS 3 and REACH Statement (Size: 257.8 KB)
Technical Drawing (Size: 607.4 KB)

More Information

General Information
Capacity (L) 550
Dimensions (LxWxH cm) 120 x 60 x 120
Height incl. Lid (cm) 120
Shape & Type D-shape Tank
Weight (kg) 36
Material & Durability
Material MDPE
Wall Thickness (mm) 8
Food-Safe Certification WRAS approved - natural / black / light blue
UV Resistance Yes
Temperature Resistance (°C) max. + 70°C
Chemical Resistance Yes with undrilled BSP Outlet
Suitable for Waste Water & Diesel Yes
Design Features
Baffles No
Lid Size (cm) 12 cm
Inspection Opening (cm) 10,6 cm
Lid vented No
Lid with Float No
3D file available Yes, on request
Connections & Installation
BSP Connections Yes
BSP Connection Size 1"
Spin Weld Outlet possible Yes
Installation Type upright, vertical
Mounting Options plastic-coated steel strips / stainless steel brackets / frames
Accessory Compatibility Brass & Plastic, Filters, Float-Valves
