57 Litre Water Tank Wheel Arch

Article#
Wheel Arch Tank 57 L for installation in vehicles, caravans, campers and camping buses. Installation on the wheel arch. Secure fastening with 6x M8 molded in screw connections.
View full description
Capacity
(Litre)
57 Litre
Dimensions
(LxWxH)
75x35.5x50 cm
Lid Size
cm
12 cm
View all specifications
Selectable options:
drilled (open)

drilled (open)

connection of accessories possible.

not drilled (closed)

not drilled (closed)

outlet/threaded sleeve completely encased in plastic from inside - drilling possible at any time.

Selectable options:

vented

allows air exchange for pressure equalization

unvented

sealed lid for closed systems

{"8275":[{"qty":8,"shipmentDate":"March 13, 2026","delivery_time":"1-2 Days","delivery_date_range":"16 - 17 Mar"},{"qty":9999999,"shipmentDate":"April 16, 2026","delivery_time":"1-2 Days","delivery_date_range":"17 - 20 Apr"}]}
{"inStock":"In Stock","deliveryTime":"Delivery Time:","deliveryBetween":"Delivery between","itemsLeft":"pc. available","available":"Available","estimatedDeliveryTime":"Delivery Time:","estimatedDeliveryBetween":"Estimated delivery between","selectLocation":"Select Location"}
{"country_id":"","postcode":"","has_address":false}
{"AT":"Austria","BE":"Belgium","CH":"Switzerland","CZ":"Czechia","DE":"Germany","DK":"Denmark","ES":"Spain","FI":"Finland","FR":"France","HR":"Croatia","IT":"Italy","LU":"Luxembourg","NL":"Netherlands","NO":"Norway","PL":"Poland","PT":"Portugal","SE":"Sweden"}
{"in_stock":"text-green-700","limited_in_stock":"text-orange-400","out_of_stock":"text-rose-700"}
{"in_stock":"text-green-700","limited_in_stock":"text-stone-700","out_of_stock":"text-orange-800"}
255.–
As low as: 204.–
20 % Discount
246.84 Incl. Tax
90% available from stock
Secure payment: iDEAL, PayPal, Credit Card & Bancontact
Personal advice & fast support

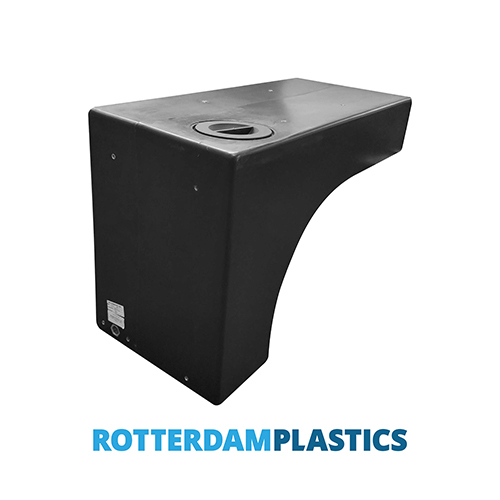

Description / 57 Litre Water Tank Wheel Arch

Small 57 litre wheel arch tank with 12 cm lid and 1/2 inch outlet

Our black 57 litre wheel arch tanks are suitable for storing and transporting portable water and other liquids in vehicles. The plastic tanks have a 1/2 "brass outlet with an internal thread. This can be ordered drilled/undrilled on request. The lid has a diameter of 12 cm without vent. The wall thickness of these tanks is approx. 8 mm. For installation on the wheel arch 10x M8 screw connections are molded in the plastic of the tank.

Drawings & Certificates

Resistance Chart Fluids Tanks (Size: 88 KB)
WRAS Certificate Potable Water Food Grade Temperature (Size: 2 MB)
RoHS 3 and REACH Statement (Size: 257.8 KB)
Technical Drawing (Size: 645.7 KB)

More Information

General Information
Capacity (L) 57
Dimensions (LxWxH cm) 75 x 35.5 x 50
Height incl. Lid (cm) 52
Shape & Type Wheel Arch Tank
Weight (kg) 7
Material & Durability
Material MDPE
Wall Thickness (mm) 8
Food-Safe Certification WRAS approved - natural / black / light blue
UV Resistance Yes
Temperature Resistance (°C) max. + 70°C
Chemical Resistance Yes with undrilled BSP Outlet
Suitable for Waste Water & Diesel Yes
Design Features
Baffles No
Lid Size (cm) 12 cm
Inspection Opening (cm) 10,6 cm
Lid vented No
3D file available Yes, on request
Connections & Installation
BSP Connections Yes
BSP Connection Size 1/2"
Spin Weld Outlet possible No
Installation Type upright, vertical
Mounting Options Fitting Kit
Accessory Compatibility Brass & Plastic, Filters, Float-Valves
