• For commercial & private use
-20%

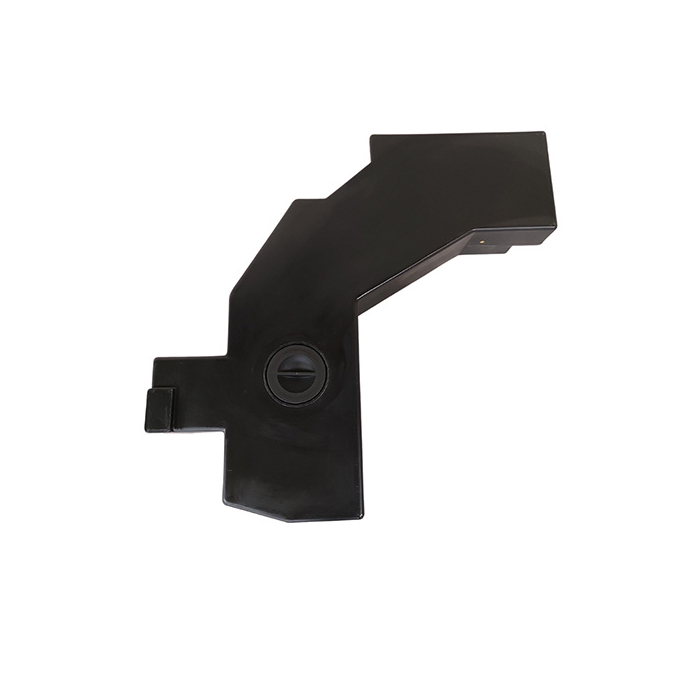

69 Litre Underslung Tank for Volkswagen Transporter T5 & T6

Article#
69 litre flat underslung water tank, manufactured from durable MDPE material. Fits perfectly where height is limited, robust and durable.
View full description
Capacity
(Litre)
69 Litre
Dimensions
(LxWxH)
100x96x19.5 cm
Lid Size
cm
12 cm
View all specifications
Selectable options:
drilled (open)

drilled (open)

connection of accessories possible.

not drilled (closed)

not drilled (closed)

outlet/threaded sleeve completely encased in plastic from inside - drilling possible at any time.

Selectable options:

vented

allows air exchange for pressure equalization

unvented

sealed lid for closed systems

{"9204":[{"qty":4,"shipmentDate":"March 20, 2026","delivery_time":"1-3 Days","delivery_date_range":"23 - 25 Mar"},{"qty":16,"shipmentDate":"April 9, 2026","delivery_time":"1-3 Days","delivery_date_range":"10 - 14 Apr"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-3 Days","delivery_date_range":"24 - 29 Apr"}]}
{"inStock":"In Stock","deliveryTime":"Delivery Time:","deliveryBetween":"Delivery between","itemsLeft":"pc. available","available":"Available","estimatedDeliveryTime":"Delivery Time:","estimatedDeliveryBetween":"Estimated delivery between","selectLocation":"Select Location"}
{"country_id":"","postcode":"","has_address":false}
{"AT":"Austria","BE":"Belgium","CH":"Switzerland","CZ":"Czechia","DE":"Germany","DK":"Denmark","ES":"Spain","FI":"Finland","FR":"France","HR":"Croatia","IT":"Italy","LU":"Luxembourg","NL":"Netherlands","NO":"Norway","PL":"Poland","PT":"Portugal","SE":"Sweden"}
{"in_stock":"text-green-700","limited_in_stock":"text-orange-400","out_of_stock":"text-rose-700"}
{"in_stock":"text-green-700","limited_in_stock":"text-stone-700","out_of_stock":"text-orange-800"}
359.–
As low as: 287.20
20 % Discount
347.51 Incl. Tax
90% available from stock
Secure payment: iDEAL, PayPal, Credit Card & Bancontact
Personal advice & fast support

Description / 69 Litre Underslung Tank for Volkswagen Transporter T5 & T6

69 litre underslung tank – vehicle-specific for Volkswagen Transporter T5 & T6. Designed for installation under the vehicle, optimising space inside your Transporter. Suitable for use as a fresh water tank or waste water tank.

Fit & Compatibility

  • Vehicle-specific: 69 L capacity, fits all Volkswagen Transporter T5 models (2003 onwards) and T6, except 4Motion
  • Dimensions (L×W×H excl. lid): 100 × 96 × 19.5 cm
  • Height incl. lid: 22.5 cm
  • Wall thickness: 6 mm
  • Outlets: 1× ½" BSP brass inlet, 1× ½" BSP brass outlet, 1× ½" BSP brass vent
  • Lid: 12 cm, non-vented
  • Mounting points: installation with 2× stainless steel brackets
  • Fitting kit contents: 2× stainless steel brackets & screws

Features & Benefits

  • High-quality MDPE tank, rotomoulded without welding seams
  • Robust, reliable and food-grade safe
  • Suitable for fresh water or waste water use
  • UV-stabilised & impact-resistant
  • Optimised for underbody installation to maximise space

Installation & Handling

  • Supplied with ½" brass inlet, outlet and vent, closed by default (can be drilled/opened)
  • 12 cm non-vented lid provides a cleaning opening
  • Secure installation with supplied stainless steel brackets and screws
  • For adding extra connections such as fillers, vents or outlets use our PP Tank Connection Sets

Applications

  • Private camper conversions
  • Caravans and RVs
  • Professional van builders & converters
  • Service vehicles requiring fresh or waste water storage

Drawings & Certificates

  • Technical drawing available
  • Certified to WRAS, REACH & RoHS standards

FAQs & Installation

  • Can the outlets be supplied drilled or undrilled? – Yes, available both ways on request.
  • Is this tank suitable for fresh and waste water? – Yes, the MDPE material is food-grade and safe.
  • Can I install this using the supplied fitting kit? – Yes, the brackets and screws included allow secure underbody installation.

Drawings & Certificates

Resistance Chart Fluids Tanks (Size: 88 KB)
WRAS Certificate Potable Water Food Grade Temperature (Size: 2 MB)
RoHS 3 and REACH Statement (Size: 257.8 KB)
Installation Guide Underslung Tank Volkswagen Transporter (Size: 1.5 MB)
Technical Drawing (Size: 285.2 KB)

More Information

General Information
Capacity (L) 69
Dimensions (LxWxH cm) 100 x 96 x 19.5
Height incl. Lid (cm) 22.5
Shape & Type Flat Tank
Weight (kg) 15.5
Material & Durability
Material MDPE
Wall Thickness (mm) 6
Food-Safe Certification WRAS approved - natural / black / light blue
UV Resistance Yes
Temperature Resistance (°C) max. + 70°C
Chemical Resistance Yes with undrilled BSP Outlet
Suitable for Waste Water & Diesel Yes
Design Features
Baffles No
Lid Size (cm) 12 cm
Inspection Opening (cm) 10,6 cm
Lid vented No
Lid with Float No
3D file available Yes, on request
Connections & Installation
BSP Connections Yes
BSP Connection Size 1/2"
Spin Weld Outlet possible No
Installation Type flat, horizontal
Mounting Options Fitting Kit
Accessory Compatibility Brass & Plastic, Filters, Float-Valves

Make your order complete

,,

Tank Connection Set Brass Straight: 1/2 Inch Ball Valve and Hosetail for 10 mm Hose

21.–
In Stock
,,

Tank Connection Set Brass 90° Bend Sockett: 1/2 Inch Knee Socket, Ball Valve and Hosetail for 13 mm Hose

26.–
In Stock
Push-In BSP Fitting 1/2" external thread x 3/8" internal thread + EPDM Gasket - food safe

Push-In BSP Fitting 1/2" external thread x 3/8" internal thread + EPDM Gasket - food safe

16.–
In Stock
,,

PP Tank Connection Set 13 mm Hose 90° Bend

22.–
In Stock
,,

PP Tank Connection Set 10 mm Hose Straight

21.–
In Stock
Push-In BSP Fitting 3/4" external thread x 1/2" internal thread + EPDM Gasket - food safe

Push-In BSP Fitting 3/4" external thread x 1/2" internal thread + EPDM Gasket - food safe

17.–
In Stock
Hosetail 10 mm x 1/2 Inch External Thread

Hosetail 10 mm x 1/2 Inch External Thread

5.80
In Stock

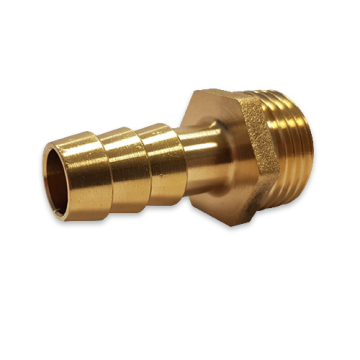

Hosetail 13 mm x 1/2 Inch External Thread

Hosetail 13 mm x 1/2 Inch External Thread

5.80
In Stock
Nipple 1/2 Inch External Thread

Nipple Reducer 1/2 Inch External Thread

4.60
In Stock
PVC Nipple 1/2 Inch External Thread

PVC Nipple 1/2 Inch External Thread

1.50
In Stock

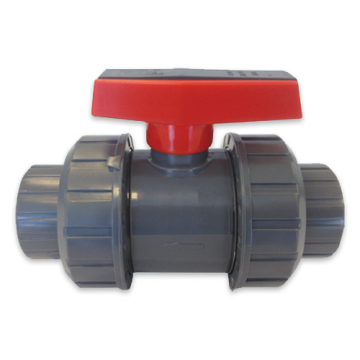

PVC Ball Valve 1/2 Inch Internal Thread

PVC Ball Valve 1/2 Inch Internal Thread

18.10
In Stock
,,

Tank Connection Set 40 mm Hose 90° Bend

29.–
In Stock
,,

Tank Connection Set 13 mm Hose Straight

21.–
In Stock

Alternatives

-20%

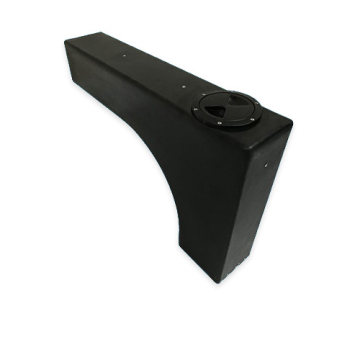

24 Litre Water Tank Wheel Arch made from black Polyethylen with screw lid

24 Litre Water Tank Wheel Arch

(LxWxH) 75x15x50 cm
Lid Size 10 cm
205.–
As low as 164.–
20% Discount
In Stock

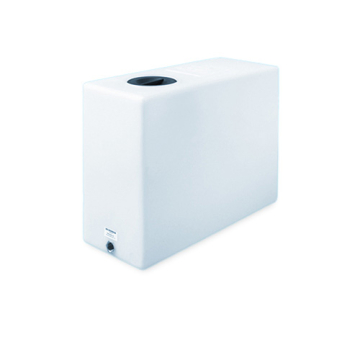

64 Litre Water Tank Upright

64 Litre Water Tank Upright

(LxWxH) 60x24x48 cm
Lid Size 12 cm
As low as 141.–
In Stock
-20%

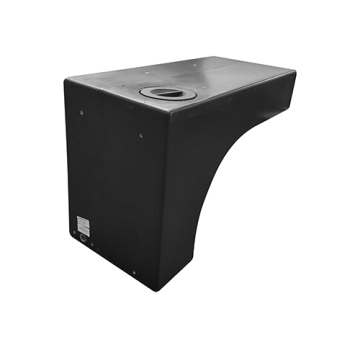

57 Litre Water Tank Wheel Arch

57 Litre Water Tank Wheel Arch

(LxWxH) 75x35.5x50 cm
Lid Size 12 cm
255.–
As low as 204.–
20% Discount
In Stock

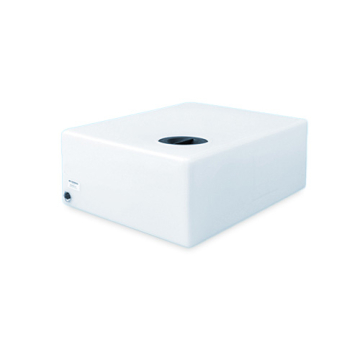

64 Litre Water Tank Flat made from natural translucent Polyethylen with screw lid

64 Litre Water Tank Flat

(LxWxH) 60x48x24 cm
Lid Size 12 cm
As low as 141.–
In Stock

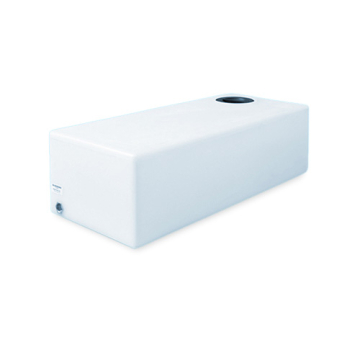

60 Litre Water Tank made from natural translucent Polyethylen with screw lid
