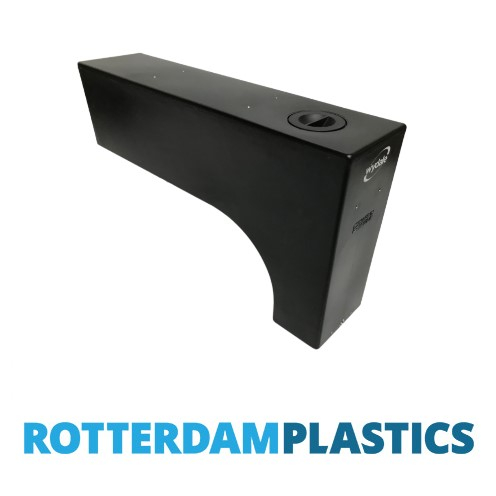

100 Litre Water Tank Wheel Arch incl. Fitting Kit - Traffic Black (Ral 9017)

Article#
100 litre wheel-arch water tank, manufactured from durable MDPE material. Includes fitting kit for mounting above the wheel arch, robust and durable.
View full description
Capacity
(Litre)
100 Litre
Dimensions
(LxWxH)
110x26x68 cm
Lid Size
cm
12 cm
View all specifications
Selectable options:
drilled (open)

drilled (open)

connection of accessories possible.

not drilled (closed)

not drilled (closed)

outlet/threaded sleeve completely encased in plastic from inside - drilling possible at any time.

Selectable options:

vented

allows air exchange for pressure equalization

unvented

sealed lid for closed systems

{"9254":[{"qty":6,"shipmentDate":"March 12, 2026","delivery_time":"1-3 Days","delivery_date_range":"13 - 17 Mar"},{"qty":9999999,"shipmentDate":"April 16, 2026","delivery_time":"1-3 Days","delivery_date_range":"17 - 21 Apr"}]}
{"inStock":"In Stock","deliveryTime":"Delivery Time:","deliveryBetween":"Delivery between","itemsLeft":"pc. available","available":"Available","estimatedDeliveryTime":"Delivery Time:","estimatedDeliveryBetween":"Estimated delivery between","selectLocation":"Select Location"}
{"country_id":"","postcode":"","has_address":false}
{"AT":"Austria","BE":"Belgium","CH":"Switzerland","CZ":"Czechia","DE":"Germany","DK":"Denmark","ES":"Spain","FI":"Finland","FR":"France","HR":"Croatia","IT":"Italy","LU":"Luxembourg","NL":"Netherlands","NO":"Norway","PL":"Poland","PT":"Portugal","SE":"Sweden"}
{"in_stock":"text-green-700","limited_in_stock":"text-orange-400","out_of_stock":"text-rose-700"}
{"in_stock":"text-green-700","limited_in_stock":"text-stone-700","out_of_stock":"text-orange-800"}
373.–
As low as: 298.40
20 % Discount
361.06 Incl. Tax
90% available from stock
Secure payment: iDEAL, PayPal, Credit Card & Bancontact
Personal advice & fast support

Description / 100 Litre Water Tank Wheel Arch incl. Fitting Kit - Traffic Black (Ral 9017)

100 litre black wheel arch water tank (MDPE) – robust and durable tank designed for installation over the wheel arch in campervans, motorhomes and caravans. Suitable for fresh and grey water applications. Supplied with stainless-steel fitting kit (brackets and screws).

Fit & Compatibility

  • Capacity: 100 L – large volume for extended journeys
  • Mounts securely over the wheel arch – optimised for efficient use of vehicle space
  • Universal wheel arch tank – fits a wide range of campervan and motorhome models
  • Dimensions: 110 × 26 × 68 cm (H excl./incl. lid)
  • Weight: 15.5 kg | Wall thickness: 5-6 mm
  • Outlet: ½″ BSP brass internal thread (drilled/open)
  • Lid: 12 cm screw cap, non-vented
  • 8× M8 inserts for fixing | Fitting kit included (stainless brackets and screws)
  • Colour: Traffic Black (RAL 9017)

Features & Benefits

  • 5-6 mm wall thickness for strength and reliability
  • Roto-moulded MDPE – seamless, UV-stabilised and impact-resistant
  • Food-grade quality – safe for drinking water, suitable for grey water
  • Optimised shape for wheel arch installation and space efficiency
  • Reliable construction for long-term vehicle use

Installation & Handling

  • ½″ BSP brass outlet – supplied drilled/open for direct use with brass connection sets
  • 12 cm lid (non-vented) for easy filling and inspection
  • 8× M8 threaded inserts for secure mounting to vehicle body or frame
  • Includes stainless-steel fitting kit (brackets and screws)
  • For adding extra connections such as fillers or vents, use our PP Tank Connection Sets

Applications

  • Campervans & motorhomes: fresh- or waste-water storage over wheel arch
  • Caravans & RVs: onboard water supply tank
  • Professional vehicle builders: quick, repeatable installation with integrated fixings and fitting kit

Drawings & Certificates

Technical drawing, WRAS food-safety certificate and REACH/RoHS compliance available for download below.

Drawings & Certificates

Resistance Chart Fluids Tanks (Size: 88 KB)
WRAS Certificate Potable Water Food Grade Temperature (Size: 2 MB)
RoHS 3 and REACH Statement (Size: 257.8 KB)
Technical Drawing (Size: 161.3 KB)

More Information

General Information
Capacity (L) 100
Dimensions (LxWxH cm) 110 x 26 x 68
Height incl. Lid (cm) 68
Shape & Type Wheel Arch Tank
Weight (kg) 15.5
Material & Durability
Material MDPE
Wall Thickness (mm) 8
Food-Safe Certification WRAS approved - natural / black / light blue
UV Resistance Yes
Temperature Resistance (°C) max. + 70°C
Chemical Resistance Yes with undrilled BSP Outlet
Suitable for Waste Water & Diesel Yes
Design Features
Baffles No
Lid Size (cm) 12 cm
Inspection Opening (cm) 10,6 cm
Lid vented No
3D file available Yes, on request
Connections & Installation
BSP Connections Yes
BSP Connection Size 1/2"
Spin Weld Outlet possible No
Installation Type upright, vertical
Mounting Options Fitting Kit
Accessory Compatibility Brass & Plastic, Filters, Float-Valves
