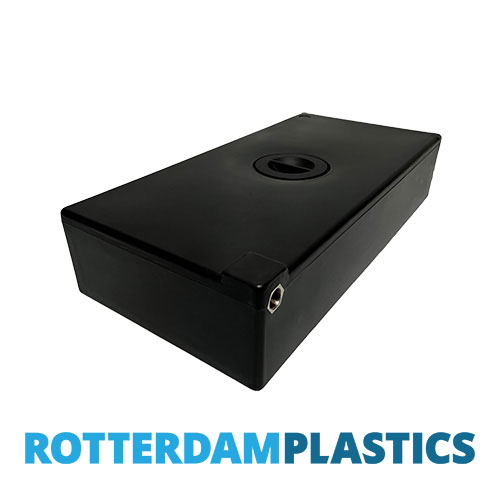

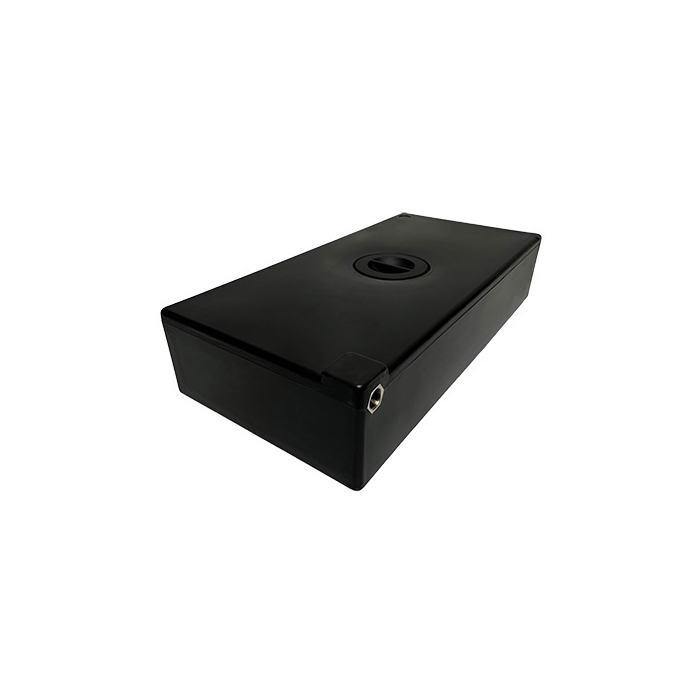

40 Litre Underslung Tank - Traffic Black (Ral 9017)
Description / 40 Litre Underslung Tank - Traffic Black (Ral 9017)
Small 40 Litre Black Underslung Tank 12 cm Lid incl. 1x 1/2 Inch inlet & 3x ¾ inch outlets
Our 40 Litre Black Underslung Tanks are suitable for storage of potable water, fresh water, waste water or any many other fluids. The Underslung Tanks have 1x 1/2" brass connection designed as filler and 3x ¾” outlets with internal bsp brass thread; one of them with a sump for maximum flexibiliy of your prefered hose connnection. The Lid has a diameter of 12 cm at the bottom and is unvented. Delivered with 2x small brass Vents on the top side if the underslung Tank. The wall thickness of the Tank is ca. 4 mm. This generic underslung Tank with total height incl. sump of 17 cm can be installed under many types of vehicles, campers and caravans with lid opening on the bottom. For more information check the technical drawing.
Drawings & Certificates
More Information
| General Information | |
|---|---|
| Capacity (L) | 40 |
| Dimensions (LxWxH cm) | 75 x 37 x 16 |
| Height incl. Lid (cm) | 16 |
| Shape & Type | Flat Tank |
| Weight (kg) | 4.5 |
| Material & Durability | |
| Material | MDPE |
| Wall Thickness (mm) | 4 |
| Food-Safe Certification | WRAS approved - natural / black / light blue |
| UV Resistance | Yes |
| Temperature Resistance (°C) | max. + 70°C |
| Chemical Resistance | Yes with undrilled BSP Outlet |
| Suitable for Waste Water & Diesel | Yes |
| Design Features | |
| Baffles | No |
| Lid Size (cm) | 12 cm |
| Inspection Opening (cm) | 10,6 cm |
| Lid vented | No |
| Lid with Float | No |
| 3D file available | Yes, on request |
| Connections & Installation | |
| BSP Connections | Yes |
| BSP Connection Size | 1x 1/2" / 3x 3/4" |
| Spin Weld Outlet possible | Yes |
| Installation Type | flat, horizontal |
| Mounting Options | plastic-coated steel strips / stainless steel brackets / frames |
| Accessory Compatibility | Brass & Plastic, Filters, Float-Valves |
