• For commercial & private use

68 litre underslung tank for spare wheel recess on VW Transporter T5 & T6 - Traffic Black (Ral 9017)

Article#
68 litre flat underslung water tank, manufactured from durable MDPE material. Space-saving for low height installations, strong and long-lasting.
View full description
Capacity
(Litre)
68 Litre
Dimensions
(LxWxH)
67x65x25 cm
Lid Size
cm
12 cm
View all specifications
Selectable options:

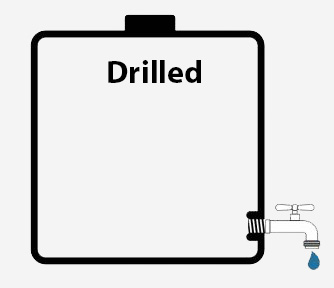

drilled (open)

drilled (open)

connection of accessories possible.

not drilled (closed)

not drilled (closed)

outlet/threaded sleeve completely encased in plastic from inside - drilling possible at any time.

Selectable options:

vented

allows air exchange for pressure equalization

unvented

sealed lid for closed systems

{"9241":[{"qty":16,"shipmentDate":"March 13, 2026","delivery_time":"1-2 Days","delivery_date_range":"16 - 17 Mar"},{"qty":9999999,"shipmentDate":"April 16, 2026","delivery_time":"1-2 Days","delivery_date_range":"17 - 20 Apr"}]}
{"inStock":"In Stock","deliveryTime":"Delivery Time:","deliveryBetween":"Delivery between","itemsLeft":"pc. available","available":"Available","estimatedDeliveryTime":"Delivery Time:","estimatedDeliveryBetween":"Estimated delivery between","selectLocation":"Select Location"}
{"country_id":"","postcode":"","has_address":false}
{"AT":"Austria","BE":"Belgium","CH":"Switzerland","CZ":"Czechia","DE":"Germany","DK":"Denmark","ES":"Spain","FI":"Finland","FR":"France","HR":"Croatia","IT":"Italy","LU":"Luxembourg","NL":"Netherlands","NO":"Norway","PL":"Poland","PT":"Portugal","SE":"Sweden"}
{"in_stock":"text-green-700","limited_in_stock":"text-orange-400","out_of_stock":"text-rose-700"}
{"in_stock":"text-green-700","limited_in_stock":"text-stone-700","out_of_stock":"text-orange-800"}
359.–
As low as: 287.20
20 % Discount
347.51 Incl. Tax
90% available from stock
Secure payment: iDEAL, PayPal, Credit Card & Bancontact
Personal advice & fast support

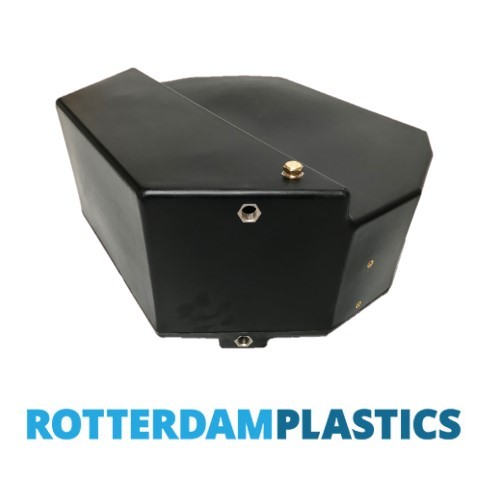

Description / 68 litre underslung tank for spare wheel recess on VW Transporter T5 & T6 - Traffic Black (Ral 9017)

68 litre underslung tank – vehicle-specific for Volkswagen Transporter T5 & T6, designed to mount in the spare wheel well (incl. all 4Motion models). Optimised for installation under the vehicle to free up interior space. Suitable for use as a fresh water tank or waste water tank.

Fit & Compatibility

  • Vehicle-specific: 68 L capacity, fits all Volkswagen Transporter T5 (2003 onwards) and T6 models, including all 4Motion variants; mounts in the spare wheel well
  • Dimensions (L×W×H excl. lid): 67 × 65 × 25 cm
  • Wall thickness: 5-6 mm
  • Outlets: 1× ½" BSP brass inlet, 1× ½" BSP brass outlet, 1× ½" BSP brass vent
  • Lid: 12 cm, non-vented
  • Mounting points: installation with 2× stainless steel brackets
  • Fitting kit contents: 2× stainless steel brackets & screws

Features & Benefits

  • High-quality MDPE tank, rotomoulded without welding seams
  • Robust, reliable and food-grade safe
  • Suitable for fresh water or waste water use
  • UV-stabilised & impact-resistant
  • Round, flat form optimised for the spare wheel well

Installation & Handling

  • Supplied with ½" brass inlet, outlet and vent pre-opened (drilled)
  • 12 cm non-vented cleaning lid
  • Secure underbody installation using the included stainless steel brackets and screws
  • After installation in the spare wheel well, the spare-wheel carrier can be reinstalled in the lowest position for additional security
  • For adding extra connections such as fillers, vents or outlets use our PP Tank Connection Sets

Applications

  • Private camper conversions
  • Caravans and RVs
  • Professional van builders & converters
  • Service vehicles requiring fresh or waste water storage

Drawings & Certificates

  • Technical drawing available
  • Certified to WRAS, REACH & RoHS standards

FAQs & Installation

  • Are the connections supplied drilled? – Yes, inlet, outlet and vent are delivered pre-opened.
  • Is the tank suitable for fresh and waste water? – Yes, the MDPE material is food-grade and safe.
  • Is mounting hardware included? – Yes, 2 stainless steel brackets with screws are included for secure installation.

Drawings & Certificates

Resistance Chart Fluids Tanks (Size: 88 KB)
WRAS Certificate Potable Water Food Grade Temperature (Size: 2 MB)
RoHS 3 and REACH Statement (Size: 257.8 KB)
Technical Drawing (Size: 280 KB)

More Information

General Information
Capacity (L) 68
Dimensions (LxWxH cm) 67 x 65 x 25
Shape & Type Flat Tank
Weight (kg) 8
Material & Durability
Material MDPE
Wall Thickness (mm) 6
Food-Safe Certification WRAS approved - natural / black / light blue
UV Resistance Yes
Temperature Resistance (°C) max. + 70°C
Chemical Resistance Yes with undrilled BSP Outlet
Suitable for Waste Water & Diesel No
Design Features
Baffles No
Lid Size (cm) 12 cm
Inspection Opening (cm) 10,6 cm
Lid vented No
3D file available Yes, on request
Connections & Installation
BSP Connections Yes
BSP Connection Size 1/2"
Spin Weld Outlet possible No
Installation Type flat, horizontal
Mounting Options Fitting Kit
Accessory Compatibility Brass & Plastic, Filters, Float-Valves
