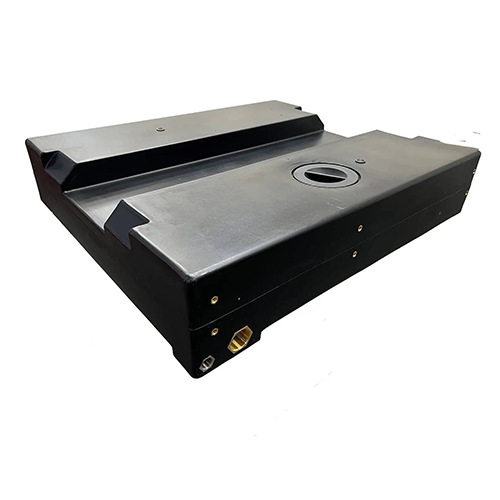

92 Litre Underslung Tank - Ducato/Boxer/Relay - 2006 Onwards incl. Fitting Kit

Article#
Made from high-quality MDPE, this 92 litre underslung water tank is designed for reliable use. Supplied with fitting kit for secure underfloor installation, robust and durable.
View full description
Capacity
(Litre)
92 Litre
Dimensions
(LxWxH)
89x76x19.5 cm
Lid Size
cm
12 cm
View all specifications
Selectable options:
drilled (open)

drilled (open)

connection of accessories possible.

not drilled (closed)

not drilled (closed)

outlet/threaded sleeve completely encased in plastic from inside - drilling possible at any time.

Selectable options:

vented

allows air exchange for pressure equalization

unvented

sealed lid for closed systems

{"9855":[{"qty":7,"shipmentDate":"March 20, 2026","delivery_time":"1-2 Days","delivery_date_range":"23 - 24 Mar"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"1-2 Days","delivery_date_range":"24 - 28 Apr"}]}
{"inStock":"In Stock","deliveryTime":"Delivery Time:","deliveryBetween":"Delivery between","itemsLeft":"pc. available","available":"Available","estimatedDeliveryTime":"Delivery Time:","estimatedDeliveryBetween":"Estimated delivery between","selectLocation":"Select Location"}
{"country_id":"","postcode":"","has_address":false}
{"AT":"Austria","BE":"Belgium","CH":"Switzerland","CZ":"Czechia","DE":"Germany","DK":"Denmark","ES":"Spain","FI":"Finland","FR":"France","HR":"Croatia","IT":"Italy","LU":"Luxembourg","NL":"Netherlands","NO":"Norway","PL":"Poland","PT":"Portugal","SE":"Sweden"}
{"in_stock":"text-green-700","limited_in_stock":"text-orange-400","out_of_stock":"text-rose-700"}
{"in_stock":"text-green-700","limited_in_stock":"text-stone-700","out_of_stock":"text-orange-800"}
515.–
As low as: 412.–
20 % Discount
498.52 Incl. Tax
90% available from stock
Secure payment: iDEAL, PayPal, Credit Card & Bancontact
Personal advice & fast support

Description / 92 Litre Underslung Tank - Ducato/Boxer/Relay - 2006 Onwards incl. Fitting Kit

92 Litre Fiat Ducato / Peugeot Boxer / Citroen Relay - Underslung Watertank incl. Fitting Kit

Our 92 Litre Underslung Watertank to fit a Fiat Ducato, Peugeot Boxer and Citroen Relay - 2006 onwards (Ducato X250 & X290) only LWB (L3) and XLWB (L4) models including Euro 6 AdBlue versions. This Unterslung Tank also has applicability across the Peugeot Boxer and Citroen Relay Van for the same model year and sizes.

The 92L Underslung Watertank can be used either as Fresh Watertank or/and Waste Watertank and is supplied with:

  • 1x 1/2″ and 1x1 1/4″ BSP Female outlet

  • 1x 12cm internal flat Lid

  • 2x 1/2″ BSP pre-installed brass vents

Shipped incl. suitable Tank Fitting Kit that includes:

  • 6x stainless steel brackets

  • 26x corrosion resistant Tek screws with sealing washer

  • 12x M8 x 16mm A2 stainless steel bolts

This Tank can be fitted as a pair with our 62L Unterslung Tank but only with a special Twin Fitting Kit. For this option view the following Product: 92L & 62L Ducato/Boxer/Relay - Fresh Watertank / Waste Watertank. You cannot fit 2 x 92L or 2 x 62L Tanks onto these Camper Vans! May not fit vehicles with rear air suspension set up!

Drawings & Certificates

Resistance Chart Fluids Tanks (Size: 88 KB)
WRAS Certificate Potable Water Food Grade Temperature (Size: 2 MB)
RoHS 3 and REACH Statement (Size: 257.8 KB)
Technical Drawing_92 Litre Underslung Tank_Ducato_Boxer_Relay (Size: 468.5 KB)

More Information

General Information
Capacity (L) 92
Dimensions (LxWxH cm) 89 x 76 x 19.5
Height incl. Lid (cm) 19.5
Shape & Type Flat Tank
Weight (kg) 12
Material & Durability
Material MDPE
Wall Thickness (mm) 6
Food-Safe Certification WRAS approved - natural / black / light blue
UV Resistance Yes
Temperature Resistance (°C) max. + 70°C
Chemical Resistance Yes with undrilled BSP Outlet
Suitable for Waste Water & Diesel Yes
Design Features
Baffles No
Lid Size (cm) 12 cm
Inspection Opening (cm) 10,6 cm
Lid vented No
Lid with Float No
3D file available Yes, on request
Connections & Installation
BSP Connections Yes
BSP Connection Size 1x 1/2" / 1x 1 1/4"
Spin Weld Outlet possible No
Installation Type flat, horizontal
Mounting Options Fitting Kit
Accessory Compatibility Brass & Plastic, Filters, Float-Valves
