92L & 62L Ducato/Boxer/Relay - Fresh Watertank / Waste Watertank - Underslung - 2006 Onwards incl. Twin Fitting Kit
Description / 92L & 62L Ducato/Boxer/Relay - Fresh Watertank / Waste Watertank - Underslung - 2006 Onwards incl. Twin Fitting Kit

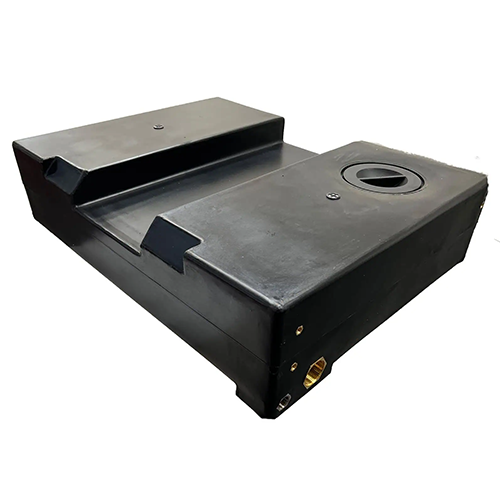

Twin Tank 92L & 62L Fiat Ducato / Peugeot Boxer / Citroen Relay - Underslung Watertank incl. Twin Fitting Kit
Our Twin Tank Combination of 1x 92 Litre Underslung Watertank and 1x 62 Litre Underslung Watertank is suitable for Fresh- and Wastewater management on a Fiat Ducato / Peugeot Boxer / Citroen Relay Camper Van. It fits models from year 2006 onwards (Ducato X250 & X290) only LWB (L3) and XLWB (L4) including Euro 6 AdBlue versions.
Each Underslung Tank is supplied with:
-
1x 1/2″ and 1x 1 1/4″ BSP Female outlet
-
1x 12cm internal flat Lid
-
2x 1/2″ BSP pre-installed brass vents
These Underslung Tanks can be used either as Fresh Watertank or/and as Waste Watertank.
Shipped incl. suitable special Twin Tank Fitting Kit that includes:
-
8x stainless steel brackets
-
36x corrosion resistant Tek screws with sealing washer
-
20x M8 x 16mm A2 stainless steel bolts
The Underslung Tanks can be fitted as a pair with the included Twin Fitting Kit only! If you want to install them individally as a single Tank please buy the single 92L Underslung Tank for Ducato/Boxer/Relay or 62L Underslung Tank for Ducato/Boxer/Relay incl. Fitting Kit for each Tank. You cannot fit 2 x 62L or 2 x 92L Underslung Tanks on these Campers! This Twin Tank Combination may not fit vehicles with rear air suspension set up!
Drawings & Certificates
More Information
| General Information | |
|---|---|
| Capacity (L) | 154 |
| Dimensions (LxWxH cm) | 146 x 76 x 19.5 |
| Height incl. Lid (cm) | 19.5 |
| Shape & Type | Flat Tank |
| Weight (kg) | 20.5 |
| Material & Durability | |
| Material | MDPE |
| Wall Thickness (mm) | 6 |
| Food-Safe Certification | WRAS approved - natural / black / light blue |
| UV Resistance | Yes |
| Temperature Resistance (°C) | max. + 70°C |
| Chemical Resistance | Yes with undrilled BSP Outlet |
| Suitable for Waste Water & Diesel | Yes |
| Design Features | |
| Baffles | No |
| Lid Size (cm) | 12 cm |
| Inspection Opening (cm) | 10,6 cm |
| Lid vented | No |
| Lid with Float | No |
| 3D file available | Yes, on request |
| Connections & Installation | |
| BSP Connections | Yes |
| BSP Connection Size | 1x 1/2" / 1x 1 1/4" |
| Spin Weld Outlet possible | No |
| Installation Type | flat, horizontal |
| Mounting Options | Fitting Kit |
| Accessory Compatibility | Brass & Plastic, Filters, Float-Valves |
